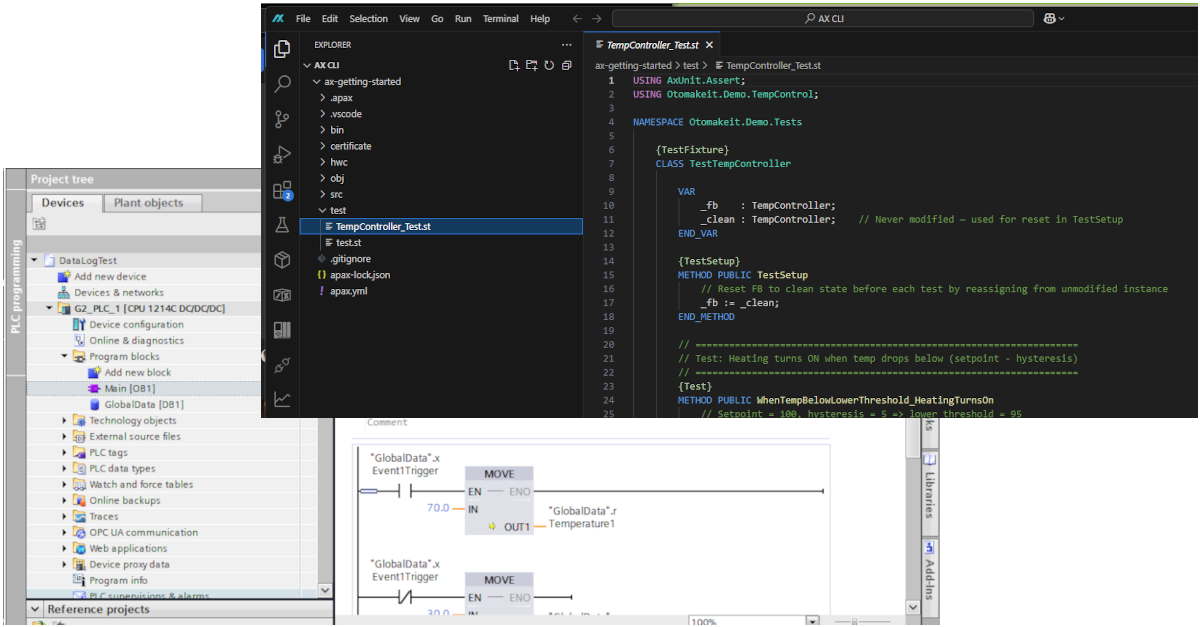

SIMATIC AX Project Structure Explained for TIA Portal Engineers

March 17, 2026 · simatic-axtia-portalplc-programmingsiemensiec-61131-3

If you know TIA Portal, you already know 90% of what SIMATIC AX does. Same concepts — different packaging.

TIA Portal uses a graphical project tree with OBs, FBs, FCs, and DBs as separate visual objects. AX uses text files following IEC 61131-3 more closely. Every TIA Portal concept has a direct equivalent in AX. I put together this guide to map them one-to-one.

Who this is for: PLC programmers and automation engineers who work in TIA Portal and want to understand how AX projects are organized. No prior AX experience needed — but you should be comfortable with basic TIA Portal project structure (OBs, FBs, FCs, DBs, tag tables).

This is the third post in my SIMATIC AX series. If you are new to AX, start with You Don’t Need AX Code IDE — SIMATIC AX Runs From Any VS Code Workspace and Two Types of SIMATIC AX Projects: Full AX vs TIA Portal Hybrid.

1. CONFIGURATION — The PLC Project

In TIA Portal, you open a project and see a tree of blocks. In AX, the configuration.st file IS that project definition:

CONFIGURATION MyConfiguration
    TASK Main(Priority := 1, Interval := T#1000ms);
    PROGRAM P1 WITH Main : MainProgram;
    VAR_GLOBAL
        sr : Shiftregister;
    END_VAR
END_CONFIGURATION

This single file declares three things that are separate in TIA Portal:

• TASKs — equivalent to OBs
• PROGRAM bindings — which code runs in which OB
• VAR_GLOBAL — equivalent to Global DBs

2. TASK — The OB Equivalent

You can have multiple TASKs with different intervals and priorities, just like having OB1 + OB35 + OB30 in TIA Portal. Higher priority tasks preempt lower ones.

3. PROGRAM — The Code That Runs in a TASK

PROGRAM P1 WITH Main : MainProgram;

This means: “Create an instance P1 of type MainProgram and execute it in Task Main.”

The TIA Portal equivalent would be OB1 calling MainProgram. The difference is that AX makes this binding declarative — you declare it in CONFIGURATION instead of writing a call statement inside OB1.

4. FBs and FCs — Same Thing, Text Files

Function Blocks and Functions live as text blocks inside .st files in the src/ folder.

Function Block (FB equivalent):

NAMESPACE Siemens.AX.Quickstart
    FUNCTION_BLOCK Shiftregister
        VAR_INPUT
            DirectionRight : BOOL := FALSE;
        END_VAR
        VAR_OUTPUT
            Q0 : BOOL;
        END_VAR
        VAR PRIVATE
            _initialized : BOOL;
            _shiftRegister : BYTE;
        END_VAR
        // logic here
    END_FUNCTION_BLOCK
END_NAMESPACE

Same concept as a TIA Portal FB. The difference:

• TIA Portal: FB is a visual object in the project tree
• AX: FB is a text block inside a .st file, wrapped in a NAMESPACE

Just simple like that.

Function (FC equivalent):

FUNCTION MyFunction : INT
    VAR_INPUT
        x : INT;
    END_VAR
    MyFunction := x * 2;
END_FUNCTION

5. Data Blocks — No Separate DB Files

There are no separate DB files in AX. Data lives in two places:

To access globals from a PROGRAM, use VAR_EXTERNAL:

PROGRAM MainProgram
    VAR_EXTERNAL
        sr : Shiftregister;
    END_VAR
    sr(DirectionRight := TRUE);
END_PROGRAM

I/O Address Mapping (Replaces the PLC Tag Table)

CONFIGURATION IoAddresses
    VAR_GLOBAL
        et200sp1_device_di8_InputAddress AT %IB3 : BYTE;
        et200sp1_device_dq8_OutputAddress AT %QB3 : BYTE;
    END_VAR
END_CONFIGURATION

When using HWC (hardware configuration), hwc compile auto-generates these mappings into SystemConstants/.

6. NAMESPACE — The Big Addition

TIA Portal has a flat namespace — all blocks share one global scope. AX adds NAMESPACE, similar to C# namespaces or Java packages:

NAMESPACE MyCompany.TemperatureControl
    FUNCTION_BLOCK TempController
        // ...
    END_FUNCTION_BLOCK
END_NAMESPACE

Import with USING MyCompany.TemperatureControl; at the top of any file that needs it.

7. OOP — CLASS vs FUNCTION_BLOCK

This is where it gets interesting. In AX, FUNCTION_BLOCK is more powerful than you might expect coming from TIA Portal. It supports methods, inheritance, and interfaces — not just the traditional VAR_INPUT/VAR_OUTPUT interface.

So what is the real difference? FUNCTION_BLOCK gives you both worlds — the traditional PLC-style interface with VAR_INPUT/VAR_OUTPUT AND the OOP features like methods and inheritance. CLASS drops the VAR_INPUT/VAR_OUTPUT and goes fully OOP with access modifiers.

Both are fully supported. CLASS also adds ABSTRACT, OVERRIDE, and NULL checking.

8. Hardware Configuration (hwc/)

Instead of TIA Portal’s graphical hardware catalog, AX uses YAML text files:

hwc/
├── Device_PLC_1.hwl.yml     <- PLC device definition
├── templates/                <- Generated from order numbers
├── iosystem.hwl.yml         <- Controller-device connections
└── topology.hwl.yml         <- Physical port-to-port wiring

Key workflow:

1. Generate templates from order numbers:

   apax hwc generate-template-file --order-number "6ES7 516-3AP03-0AB0" --version "V4.0"


2. Define devices referencing templates (with IP addresses and device names)
3. Define the IO system and topology
4. Compile: apax hw_compile — generates I/O address mappings
5. Load: apax hw_load — downloads to PLC

9. apax.yml — The Project Manifest

Every AX project has an apax.yml file at its root. Think of it as the project configuration hub:

10. Unit Testing with AxUnit

AX includes a built-in test framework. Tests compile to LLVM and run on your PC — no PLC hardware needed:

USING AxUnit.Assert;

NAMESPACE Test
    {TestFixture}
    CLASS MyTestFixture
        {Test}
        METHOD PUBLIC MyTestMethod
            Equal(actual := TRUE, expected := TRUE);
        END_METHOD
    END_CLASS
END_NAMESPACE

Run with: apax test

This is a big deal, I should say. In TIA Portal, you basically test on the PLC or not at all. Here you can run tests on your PC during development.

11. Full Project File Structure

Here is what a complete AX project with hardware configuration looks like:

project-root/
├── apax.yml                  <- Project manifest
├── src/                      <- Application source code
│   ├── configuration.st      <- CONFIGURATION (tasks, programs, globals)
│   ├── MainProgram.st        <- PROGRAM (main cyclic logic)
│   └── [YourBlocks].st       <- FBs, FCs, CLASSes
├── hwc/                      <- Hardware configuration (YAML)
├── test/                     <- Unit test files (.st)
├── certificate/              <- TLS certificates
├── SystemConstants/          <- Auto-generated IO mappings
├── bin/                      <- Compiled SW output
├── hwbin/                    <- Compiled HW output
└── .vscode/                  <- Debug settings

12. The Mental Model Shift

Here is how I think about it after going through all of this:

Everything that is a graphical object in TIA Portal becomes a text declaration in AX. The PLC still runs the same way — cyclic tasks calling programs that call function blocks. But the project is pure text, you can track it with git, and you can plug it into CI/CD pipelines. For someone coming from TIA Portal, I think this is the biggest mindset change.
